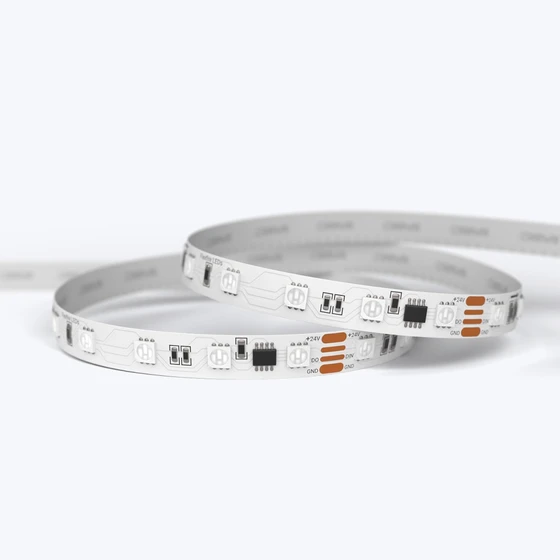

ColorBright™️ RGB Digital Pixel LED Strip Light
The ColorBright™️ RGB Digital Pixel LED Strip Light enables each segment of the LED strip to be controlled individually. This strip uses a top-of-the-line WS2811 IC LED chip so you will be able to control every 6 LEDs as a Pixel. The ability to control those 50 pixels individually gives way to beautiful, dynamic, breathtaking effects, which are perfect for commercial and entertainment environments.
Top Features and Benefits:
-
✔ Millions of colors to create and choose from
-
✔ 50 pixels (6 LEDs per Pixel)
-
✔ Uses WS2811 IC
-
✔ Maximum run length up to 32 ft (10 m)
-
✔ Fully dimmable and color controllable
-
✔ Thermally resistant VHB 4930 adhesive
-
✔ 7-year warranty
-
✔ 50,000 hour lifespan (8 hours/day for 17 years)
-
✔ Thick 3oz pure copper PCB for excellent thermal management
-
✔ UL Listed (cULus) E362522
Pair it with our Leona® Digital Controller to Access Hundreds of Features
When paired with our Leona® Digital Controller, you will be able to create chasing, flashing, strobing, or scrolling effects, while also being able to adjust the colors, brightness, and speed of the pixels. You have complete control over your Digital Pixel LED strip with our Leona® Smart app, or use the Leona® Digital Remote to control your lights from a handheld device. The ColorBright™️ RGB Digital Pixel LED Strip Light is also compatible with any digital controller compatible with the WS2811 IC LEDs.
Applications and Use:
These strips are installed in a wide variety of applications including:
-
• Entertainment
-
• Hospitality
-
• Areas requiring dynamic lighting effects
-
• Shop display lighting
-
• Color controllable cove lighting
-
• Signage
-
• Bedroom lighting
-
• Backlighting
-
• Edge lighting
-
• Cabinets, shelves lighting
-
• Hotel lobbies
Why choose ColorBright™ RGB Digital Pixel LED Strip Lights?
This strip allows you to create chasing effects while adjusting the brightness, speed, and the length of each pixel, and you will also have the possibility to choose from countless solid colors. This LED strip light is made out of pixels, exactly 50 per reel, all of which have a microchip that allows you to control each pixel individually (6 LEDs). You will be able to create different effects on different parts of the LED strip, all at once or in intervals.
This strip has a 3 oz PCB thickness for better heat dissipation, and a 10-meter maximum power run length. The ColorBright™ RGB Digital Pixel LED Strip can be easily controlled with a Leona® Digital Controller or any other SPI controller compatible with the strip’s WS2811 IC.
Examples of what the RGB Digital Pixel can do to your space
Specifications:
-
✔ 3.65 Watts/ft
-
✔ 5050 LED chips
-
✔ SPI controlled
-
✔ 50 pixels (6 LEDs per Pixel)
-
✔ Uses WS2811 IC
-
✔ Maximum run length up to 32 ft (10 m)
-
✔ Efficacy up to 29 lm/W
-
✔ 3M VHB 4930 adhesive
-
✔ 120° beam angle
-
✔ Width: 3/8" (10 mm)
-
✔ Height: 1/16” (2.15 mm)
-
✔ Short LED pitch of 7/16” (11 mm)
-
✔ 24V DC input
-
✔ Cuttable every 4" (100 mm)
-
✔ 18 LEDs/ft (60 LEDs/m)
-
✔ Double layer 3oz pure copper PCB
-
✔ Operating temperature: -4ºF to 113ºF (-20°C to 45°C)
-
✔ Environmental Temperature -4°F - 113°F (-20°C - 45°C)
-
✔ UL Listed (cULus) E362522
-
✔ 50,000 hour lifespan (8 hours a day for 17 years)
- ✔ 7-year warranty
Special Instructions
- Like all SPI LED strips, this strip is unidirectional, meaning that the data can only flow in one direction. There are arrows printed on the PCB indicating the correct direction, when using connectors or attaching power, only do so at the beginning of the strip.
- When installing our RGB Digital Pixel LED Strip Lights, make all necessary connections before applying power to the LED strip. Do not cut the strips or make connections while power is applied. Not following these instructions will damage the strip’s circuitry.
| SKU | Watts/Foot | Watts/Meter | Lumens/Foot | Lumens/Meter | Luminous Efficacy |
| CB-PXL-RGB | 3.65W | 12W | 107 lm | 350 lm | 29 lm/w |
Certifications:
LED Strip Light Kits
Purchase a complete kit with all the basic components needed:
-
Plug and Play kit with Leona® Digital Controller
Aluminum Channels
Compatible Aluminum Mounting Channels
Controllers and Home Automation
Nicolaudie STICK-DE3 Programmable DMX Controller
Connectors
RGB Solderless Grip Connectors
Power Supplies
RGB Digital Pixel LED Strip Light FAQ
Q: What are Digital LED strips?
Digital LED strips (also known as “addressable” or “pixel” strips), are LED strips with a special type of chip that allows control over individual LEDs or groups of LEDs. This allows the creation of different effects on different parts of the LED strip all at once or in intervals.
Q: What is an IC?
IC stands for Integrated Circuit, and it refers to the built-in chips that allow for individual programming for color-changing effects that are unachievable with normal, analog LED strip lights. All Digital LED strips are differentiated by the tape of IC chip they contain, and they vary from brand to brand, so a controller with a specific IC will only work with other LED products that have the compatible IC chip.
Q: What additional precautions do I need to take while installing my Digital LED strips and controller?
- Please refer to the Installation Guide for more Installation Recommendations.
- Make ALL necessary connections before feeding power to your installation.
- Turn off power to your installation BEFORE making any changes to your connections. This includes cutting the strip when power is applied. If you attempt to make or break connections while power is running through the strip there is a possibility that you could short out your strip’s IC causing the strip to no longer function.
- Make sure to double check all connections before powering the strip. The colors on the wires of the controller will not always match the colors on the connector wires attached to the strip.
Q: What is the product warranty?
Because of our unyielding confidence in the quality of our product, we offer a 7-year warranty on our ColorBright™ RGB Digital Pixel LED LED Strip lights. For more info, please read our warranty policy.
Q: What is the lifespan of your strip lights?
Our lights have been rigorously tested and have an expected lifespan of 50,000 hours before dropping to 70% luminosity. This means that if you were to use your lights 12 hours a day, every day, the lights would be expected to last longer than 10 years. Even after that time has elapsed, the lights will maintain a brightness of 70%. Higher-output strips require a heat sink to reach the expected lifespan and beyond.
Q: What are lumens (lm)?
This is a quantifiable amount of light produced by an LED strip or other light-producing product, as seen by the human eye. In other words, this is one way we can measure how much light is produced. When comparing LED strip lights, you want to compare the lumen output as well as the CRI, watts/foot, warranty, and bin selection.
Q: Can I cut the strips myself?
Yes, our LED strip lights are made to be cut to your desired length. Using sharp scissors, you can cut this strip every 4". You’ll see the cut marks printed on the surface of the strip.
Q: What is the importance of UL Listed?
The Underwriters Laboratories (UL) are an independent, not-for-profit organization that focuses on evaluating products for safety certification. This means you can use and install these LEDs in commercial spaces, industrial applications and in your home knowing that these are safe products.
More Information on LED Strip Lights:
Top 4 "need to know facts" about LED strip lights before purchasing - With a wide range of quality and price points in the market, it is important to educate yourself before buying.
90% of our customers found this page useful in selecting their LED strips
LED Strip Lighting Examples - The versatility of LED strips can be seen in the variety of projects our clients have completed. Looking for ideas? LED lighting example projects
Need assistance with your project or purchase? Our design specialists are ready to help.
Contact Us
Downloads:
Installation Guide
General LED Strip Light Installation Guide
Data Sheet
ColorBright™ RGB Digital Pixel Series LED Strip Spec Sheet
Examples
Solderless Connector Guide
Solderless Connectors Installation Guide
IES / LDT Files
Red IES / LDT | Green IES / LDT | Blue IES / LDT | RGB IES / LDT
