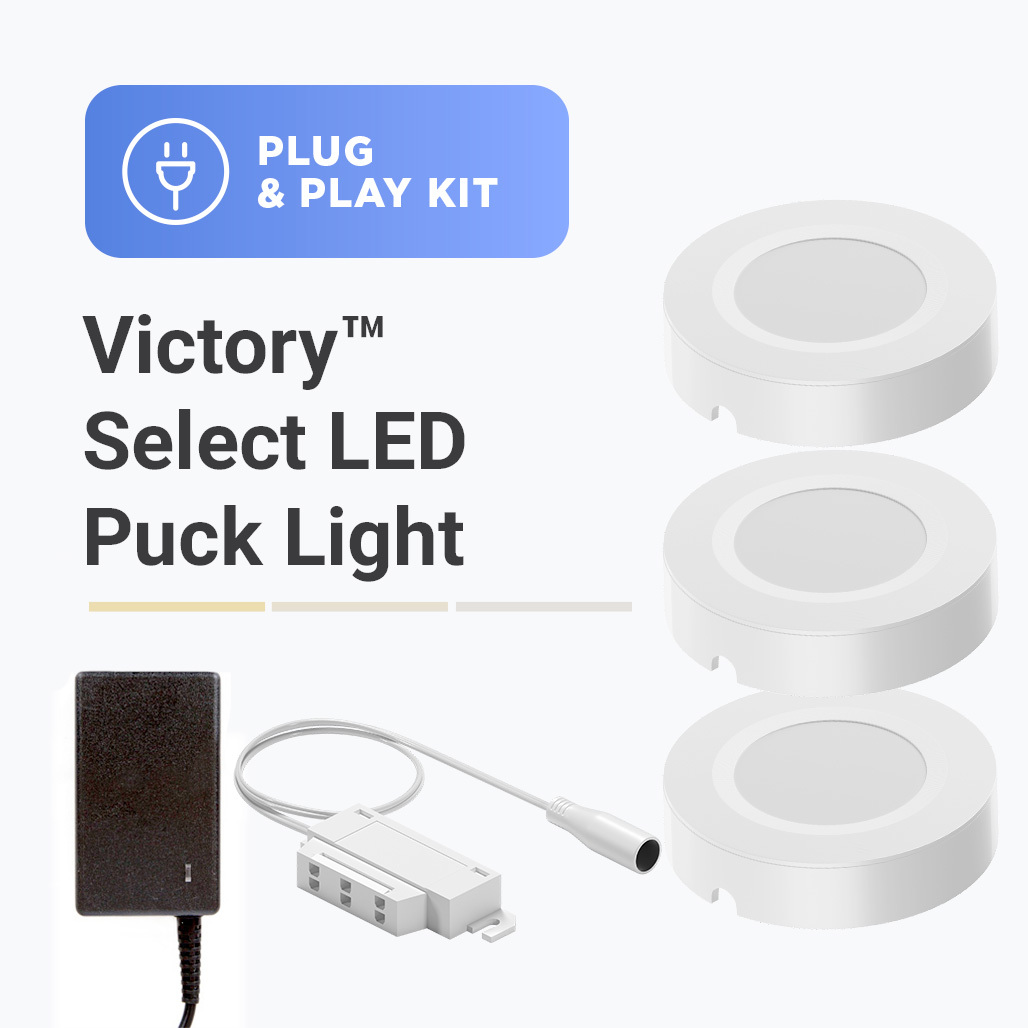

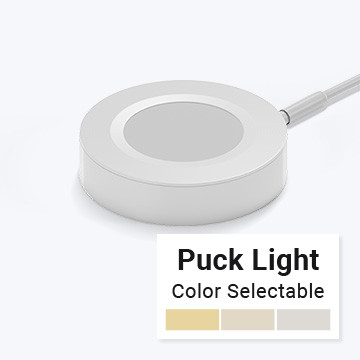

Victory™ Select LED Puck Light
We all have beautiful objects in our living spaces that we like everyone to notice—maybe a piece of art in the entryway, a souvenir, or kitchen essentials that make cooking more enjoyable. Until now, choosing the right light to highlight these items often involved a lot of guesswork.
That’s why we designed the spotlight focus of our Victory™ Select LED Puck Lights. Its CCT-selectable technology lets you test and choose from three shades of white light via an easy-access switch before installation: from warm white for cozy memories and family pictures to neutral or cooler tones for elegant, minimalist decor or sharp-looking artwork details.
You can also connect up to three of these lights with our Victory™ Select 3-Way Splitter, creating an evenly spaced row of light recessed above your items or surface-mounted with a clean finish. These DIY pucks also add accent depth and set the mood in kitchens, living rooms, bedrooms, and other spaces around your home.
Note: Each puck light includes a connector designed specifically for use with our Victory™ Select 3-Way Splitter.
Top features and benefits:
-
✔ Choose your color temperature from 3000K, 4000K, or 5000K
-
✔ Up to 214 lumens per puck
-
✔ IP20-rated for indoor, dry location
-
✔ Great color rendering with a CRI of up to 95
-
✔ Dimmable
Applications and uses:
-
✔ Under-cabinet kitchen lighting
-
✔ Closet and pantry illumination
-
✔ Accent lighting for shelves, display cases, or bookcases
-
✔ Task lighting for workspaces or offices
-
✔ Commercial uses: retail displays, hospitality, and more
Victory™ Select LED Puck Light Specifications:
-
✔ CCT selectable: 3000K, 4000K, or 5000K
-
✔ 3 W/puck
-
✔ 5-year warranty
-
✔ 50,000-hour lifespan
-
✔ White finish
-
✔ Diameter: 2.75" (70 mm)
-
✔ Dimmable
-
✔ 120° beam angle
-
✔ 24V DC input voltage
-
✔ High color rendering with a CRI of up to 95
-
✔ ETL
-
✔ Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
-
✔ Operating Temperature: -4°F to 149°F (-20°C to 65°C)
-
✔ 60” long connector for plug-and-play installation with the splitter
Product SKU | Color (CCT) | Watts/Foot (Meter) | Lumens/Foot (Meter) | Luminous Efficacy (Lumens/Watt) | CRI | Gamut Score (Rg) | Relative Fidelity Score (Rf) |
PL-R-MULTI-W-24V | 3000K | 3 W | 200 lm | 68 lm/W | 94 | 101 | 91 |
4000K | 3 W | 213 lm | 73 lm/W | 93 | 96 | 87 | |
5000K | 3 W | 214 lm | 73 lm/W | 95 | 99 | 91 |
Certifications:
LED Puck Light Kits
Purchase a complete kit with all the components needed:
Splitter
Victory™ Select 3-Way Splitter
Controllers and Home Automation
Extra Wire
2-Strand 20 AWG CMP-rated Wire
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
Dimmable Drivers
Zurik® Universal Dimmable Driver
Zurik® EMLV Dimmable LED Driver
Lutron Hi-Lume Dimmable Driver
Victory™ Select LED Puck Lights FAQ:
Q: What are color-temperature-selectable LED puck lights?
Color-temperature-selectable LED puck lights are compact lighting fixtures that let you choose the light’s shade of white—from warm, neutral, or cool white—using a built-in switch.
Q: What are the benefits of using color temperature-selectable lighting?
This feature helps you preview the ambiance of your space before installation, ensuring it perfectly matches your desired outcome, mood, or activity.
Q: How do I change the color temperature on these LED puck lights?
Changing the color temperature is simple. With the back of the puck facing you and the integrated switch at the top, adjust it to one of the following settings: left for warm white (3000K), middle for neutral white (4000K), or right for cool white (5000K).
Q: Where can I install LED puck lights?
These versatile LED puck lights are perfect for under-cabinet kitchen lighting, closets, pantries, shelves, display cases, bookcases, workspaces, and even commercial settings like retail displays or hospitality environments.
Q: Can LED puck lights be installed in ceilings or walls?
No, our LED puck lights are not rated for in-ceiling or in-wall installations.
Q: What size hole do I need to cut for recessed LED puck light installations?
For recessed installations, you'll need to cut a 2¼-inch-diameter hole. This size ensures a proper fit for the puck light housing while maintaining a clean, professional appearance.
Q: Can I hardwire LED puck lights by cutting off the connector?
Yes, you can hardwire LED puck lights by cutting off the connector and wiring directly to your LED driver or LED controller. Your product will still be fully covered under warranty. Just note that since the connector is removed, it won’t qualify for our 30-day money-back guarantee, which requires products to be returned in their original condition.
Q: Are these LED puck lights dimmable?
Yes, our Victory™ Select LED Puck Lights are dimmable when used with compatible dimmers and controllers, allowing you to further adjust the brightness of the light to fit your space.
Need assistance with your project or purchase? Our design specialists are ready to help.
Downloads:
User Guide / Data Sheet
Victory™ Select LED Puck Light Spec Sheet
