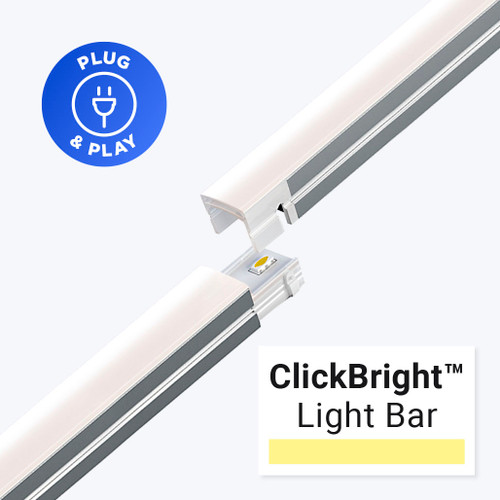

ClickBright™ CCT Selectable Handsfree Light Bar Kit - Plug and Play
Say goodbye to dull under-cabinet, closet, and shelf lighting with the ClickBright™ Color Temperature Selectable LED Light Bar Kit featuring a hand-motion sensor. Simply wave your hand to cycle through three carefully selected white light hues, from warm to cool, creating the perfect ambiance for any task or mood.
With plug-and-play installation and a linkable design, this kit delivers ultimate versatility without the guesswork—everything you need for effortless DIY lighting upgrades.
Includes Everything You Need for a Seamless Installation:
- Choose between 4 ft or 8 ft of ClickBright™ Tunable White Light Bars - Enjoy an easy, plug-and-play installation with a linkable design, allowing you to customize your specific design needs.
- Simple Plug-In Power Supply [24V 24W or 24V 96W] - Just plug it into your wall outlet—no electrician needed!
- Hand-Motion Sensor Control - Effortlessly control your bars—wave once to turn them on/off, twice to switch between three white light presets (warm, neutral, or cool), and hold your hand in front to di.!
- Easy Connectors - Power your system or go around a corner—these connectors plug directly into your light bars, no soldering required.

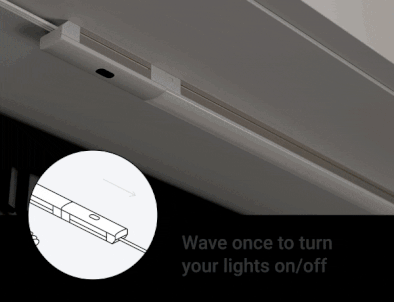

Handsfree Power, Brightness, and White Control!
Experience ultimate convenience with our compact hands-free controller that puts complete control at your fingertips (without actually using your fingers!) Simply wave your hand to turn your light bars on or off, hold your hand in front of the sensor to dim the lights, or wave twice in front of the sensor to change between white hues.
This small but powerful controller transforms any space into a practical environment, perfect for kitchens, closets, and workspaces where hands-free operation enhances both convenience and hygiene.
Light Bar Kit Applications:
- Under-Cabinet Lighting: Kitchen countertop illumination and task lighting
- Closet/Shelf Lighting: Wardrobe and display shelf illumination
- Workshop Lighting: Garage and workspace task lighting
- Pantry Lighting: Food storage and utility closet illumination
- Desk Lighting: Home office and study area task lighting
Why You'll Love This Kit
Experience the future of hands-free lighting with this motion-activated LED light bar kit, delivering instant, brilliant illumination with just a wave of your hand and installed in minutes.
Installation Wiring Diagram
ClickBright™ LED Light Bar Specifications
Voltage: 24V DC
Wattage: 3.5 W/10” light bar or 6.5 W/20” light bar
Brightness: Up to 329 lm/10” light bar or 534 lm/20” light bar
CRI: High CRI of up to 94
Max Run Length in Series: 16 ft (5 m)
Dimmable: Yes
IP Rating: Indoor, Dry Location (IP20)
Plug-In Power Supply Specifications
4-ft Kit Plug-In Power Supply:
Product SKU: 2V4-WMPS2-1
Input Voltage: 100-240V AC 50/60Hz
Output Voltage: 24V DC
Wattage: 24W
Max Amperage: 1A
Efficiency: 86%
Class 2: Yes
Cable Length: 4'
IP Rating: Indoor, Dry Location (IP20)
Dimensions (L*W*H): 3 3/8" x 1 7/8" x 1 1/4"
8-ft Kit Plug-In Power Supply:
Product SKU: 24V-DPS2-4
Input Voltage: 100-240V AC 50/60Hz
Output Voltage: 24V DC
Wattage: 96W
Max Amperage: 4A
Efficiency: 88%
Class 2: Yes
Cable Length: 4'
IP Rating: Indoor, Dry Location (IP20)
Dimensions (L*W*H): 5 1/2" x 2 3/8" x 1 3/8"
Downloads
ClickBright™ Tunable White LED Light Bars Data Sheet
24V 24W Plug-in Power Supply Adaptor Spec Sheet
24V 96W Plug-in Power Supply Adaptor Spec Sheet
Frequently Asked Questions
Q. Why choose LED light bars?
LED light bars are your solution for clean, professional lighting with zero hassle. Their sturdy construction with built-in channels and connectors ensures a flawless, uniform glow while making connections effortless.
Q. What is the difference between an LED strip light and an LED light bar?
LED strip lights are flexible tape lights made with soft circuit boards and an adhesive backing. These two main features allow the strip lights to be bent, cut, and mounted with ease. In contrast, LED light bars have a rigid copper structure with the channel and connectors already built into the product. This guarantees a seamless glow and extremely fast, easy connections.
Q. Can light bars be cut?
No, our ClickBright™ light bars are engineered as complete, sealed units that aren't designed to be cut. This is what gives them their durability and performance reliability. Cutting them would damage the internal circuitry and void your warranty protection. The good news? They come in 10” and 20” lengths to fit various installation needs.
Q: Do I need an electrician to install my ClickBright™ kit?
No electrician needed! The plug-in power supply connects to any standard wall outlet, making installation quick and easy to do yourself. The light bars are non-cuttable, and the hand-motion sensor connects directly to the power supply—just like your phone charger or similar devices.
Q. Can I connect ClickBright™ 10-in and 20-in bars?
Yes, you can mix and match 10-in and 20-in bars freely, with continuous runs up to 16 ft.
Q. What accessories are included in this kit?
This kit includes 4 or 8 ft of light bars, one (1) plug-in power supply carefully selected for each length, one (1) hand-motion sensor control that links to the first light bar in your system, one (1) 40" jumper connector for small jumps or gaps, and one (1) adjustable corner connector.
Q. Which connector should I use to turn a corner or for a gap in my project?
Use the 40-in jumper connector for any gaps in the setup.
Use the adjustable horizontal corner connector for any horizontal turns or corners if there are no gaps.
