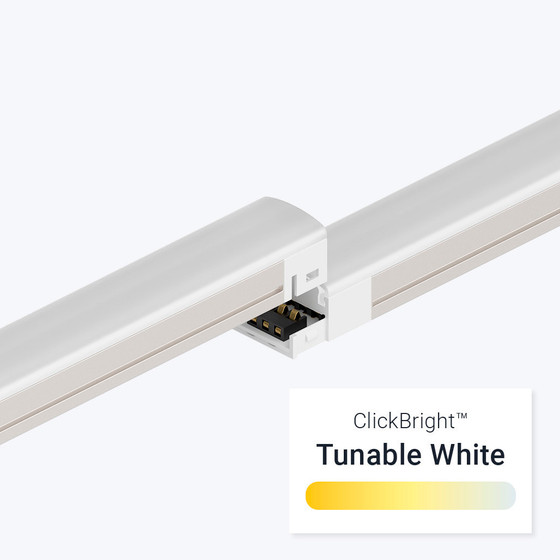

ClickBright™ Tunable White Light Bars
Say goodbye to dull under-cabinet, closet, and shelf lighting. It’s time to upgrade these spaces with the ultimate versatility and functionality of our ClickBright™ Tunable White LED Light Bars, light fixtures designed to adapt to your needs at every moment.
Click. Bright. That’s It!
This updated solution offers the perks of white customization while maintaining the uninterrupted line of light and linkable design you know and love from our classic light bars. With a diversified line of connectors and accessories—plus revamped packaging—shipping and installation have never been easier.
Need effortless lighting control while cooking or working at your desk? Add an attachable hand-motion sensor for on/off functionality, dimming, and seamless transitions between preset white hues. Prefer more precision? Use the in-app slider in the Leona® Smart App for pinpoint CCT selection.
Important: A power cable is required, but is not included with this product.
Top Features and Benefits:
- Easy plug-and-play lighting solution
- Fully diffused lighting
- Slim lightweight design
- Mix and match bar lengths as desired
Applications and Use:
These light bars are installed in a wide variety of applications, including:
- Under cabinets
- Above cabinets
- Gondola lighting
- Behind and under shelving
- Kitchen lighting
- Display lighting
- Bed or headboard lighting
- Trade shows
Specifications
- 3.5 Watts/10” Light Bar
- 6.5 Watts/20” Light Bar
- 5-year warranty
- 50,000-hour lifespan (8 hours/day for 17 years)
- Width: 0.65"
- Height: 0.49"
- Max length in series 16 ft
- Dimmable
- 120° beam angle
- 24V DC input voltage
- High CRI of 93
- Ambient Temperature: 32°F to 104°F (0°C to 40°C)
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- IP20-rated for indoor, dry locations
- ETL Listed
| Product SKU | Length | Color CCT | Watts/Fixture | Lumen/Fixture | Luminous Efficacy(Lumen / Watt) | CRI | Gamut Score(Rg) | Relative Fidelity Score(Rf) | TLCI |
| LB-TW3050K | 10” | 3000K | 3.5W | 270 lm | 86 lm/W | 93 | 99 | 89 | 92 |
| 4000K | 3.5W | 313 lm | 107 lm/W | 94 | 98 | 87 | 93 | ||
| 5000K | 3.5W | 329 lm | 94 lm/W | 91 | 94 | 82 | 90 | ||
| 20” | 3000K | 6.5W | 423 lm | 83 lm/W | 93 | 99 | 89 | 93 | |
| 4000K | 6.5W | 487 lm | 102 lm/W | 94 | 97 | 87 | 93 | ||
| 5000K | 6.5W | 534 lm | 91 lm/W | 91 | 94 | 82 | 90 |
Certifications:
Compatible Products
Light Bar Kits
Purchase a complete kit with all the components needed:
Controllers and Home Automation
Connectors
Compatible Connectors and Accessories
Extra Wire
Tunable White 3-Strand 20 AWG CMP-rated Wire
Power Supplies
Non Dimmable Drivers
Flexfire LEDs® Plug-in Power Supply
Mean Well™ HLG and LPV Hardwired Power Supplies
Dimmable Drivers
Zurik® Universal Dimmable Driver
ClickBright™ Tunable White Light Bars FAQs
Q. What is the difference between an LED strip light and LED light bar?
LED strip lights are flexible tape lights made with soft circuit boards and an adhesive backing. These two main features allow the strip lights to be bent, cut, and mounted with ease. In contrast, LED light bars have a rigid PCB with the channel and connectors already built into the product. This guarantees a seamless glow of light and extremely fast and easy connections.
Q. Can I connect ClickBright™ 10-inch and 20-inch bars?
Yes, you may connect 10-inch and 20-inch bars and mix and match as you please. The maximum run length before voltage drop will be up to 16 feet.
Q. Can I use the ClickBright™ tunable white light bars as a static white?
TYes, if you add a DC power connector with sensor to control the lights, you’ll be able to select between a warm white (3000K), a neutral white (4000K), or a cool white (5000K). To enjoy the tunable white functionality of the light bars, you’ll need to use the DC power connector with bare lead wires.
Q. Is there an outdoor option?
No, we do not have an outdoor version of the ClickBright™ Light Bars. However, we have many other high-quality outdoor IP65-rated LED strip lights you can choose from.
Q. What is the maximum run length of the ClickBright™ tunable white light bars before voltage drop?
The maximum run length of the ClickBright™ Tunable White Light Bars is 16 feet. In other words, you shouldn’t have continuous daisy-chained runs of light bars that surpass 16 feet of length.
Q. Can I cut the light bars?
No, ClickBright™ light bars are not cuttable.
Q. What is the importance of ETL Listed?
Electrical Testing Laboratories (ETL) is a testing and certification division that rigorously tests products to ensure safety and quality. ELT Listed products indicate that the tested product has been found in compliance with accepted national standards.
Need assistance with your project or purchase? Our design specialists are ready to help.
