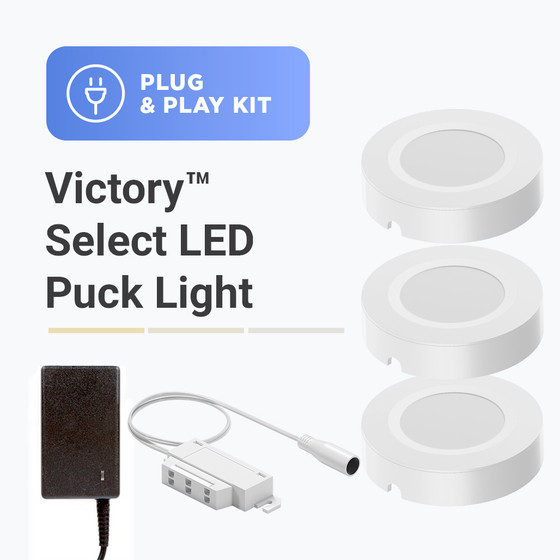

Victory™ Select LED Puck Light Kit
When an object makes us proud, such as an artwork or family trip photo, we want to share it with friends and guests right away. And nothing is better for this than lighting. But the time or electrical know-how that installations usually require can delay us or even stop us altogether.
That changes today! With the new Victory™ Select LED Puck Light Kit, lighting has never been easier or more DIY-friendly. Not only does it feature our latest CCT-selectable technology—letting you choose warm, neutral, or cool white before installation—but it also comes with everything you need to set up without advanced skills or tools.
The kit includes three puck lights and a 3-way splitter, which connect with simple push-fit Mat-N-Lok connectors. From there, everything plugs into the included plug-in power supply and then straight into your wall outlet. That’s it. You’ve got everything for effortless under-cabinet, shelf, or display lighting projects!.
Want to take it a step further? Add the Leona® Smart Plug (optional) to make your system more straightforward and energy-efficient. With it, you can monitor and switch your puck lights on or off right from your phone.
Victory™ Select LED Puck Light Specifications:
-
✔ CCT selectable: 3000K, 4000K, or 5000K
-
✔ 3 W/puck
-
✔ 5-year warranty
-
✔ 50,000-hour lifespan
-
✔ White finish
-
✔ Diameter: 2.75" (70 mm)
-
✔ Dimmable
-
✔ 120° beam angle
-
✔ 24V DC input voltage
-
✔ High color rendering with a CRI of up to 95
-
✔ ETL-listed
-
✔ Ambient Temperature: -4°F to 104°F (-20°C to 40°C)
-
✔ Operating Temperature: -4°F to 149°F (-20°C to 65°C)
-
✔ Connector with 60” wire for plug-and-play installation with the splitter
| Product SKU | Color (CCT) | Watts/Foot (Meter) | Lumens/Foot (Meter) | Luminous Efficacy (Lumens/Watt) | CRI | Gamut Score (Rg) | Relative Fidelity Score (Rf) |
| PL-R-MULTI-W-24V | 3000K | 3 W | 200 lm | 68 lm/W | 94 | 101 | 91 |
| 4000K | 3 W | 213 lm | 73 lm/W | 93 | 96 | 87 | |
| 5000K | 3 W | 214 lm | 73 lm/W | 95 | 99 | 91 |
Certifications:
Victory™ Select LED Puck Light Kit Wiring Diagram
Victory™ Select LED Puck Lights FAQ:
Q: What are color-temperature-selectable LED puck lights?
The color-temperature-selectable LED puck lights included in your kit are compact lighting fixtures that let you choose the light’s shade of white—from warm, neutral, or cool white—using a built-in switch.
Q: What are the benefits of using color temperature-selectable lighting?
This feature helps you preview the ambiance of your space before installation, ensuring it perfectly matches your desired outcome, mood, or activity.
Because your kit includes three separate puck lights, you can try all three white color temperatures live and side by side to see which one best suits your application.
Q: How do I change the color temperature on my kit’s LED puck lights?
Changing the color temperature is simple. With the back of the pucks facing you and the integrated switch at the top, adjust it to one of the following settings: left for warm white (3000K), middle for neutral white (4000K), or right for cool white (5000K).
Q: Where can I install my kit?
This versatile LED puck light kit is perfect for under-cabinet kitchen lighting, closets, pantries, shelves, display cases, bookcases, workspaces, and even commercial settings like retail displays or hospitality environments.
Q: Is my kit DIY, or do I need professional help?
Our plug-and-play kits are designed for easy DIY setup—no special tools or technical knowledge required. If you enjoy hands-on projects, you can handle it yourself! That said, we always recommend consulting a licensed electrician if you’re unsure about any of your puck lights’ electrical connections.
Q: What is a 3-way splitter, and how many LED puck lights can I connect to it?
A splitter for LED puck lights is a small accessory that allows you to connect multiple puck lights to a single power source or controller.
The kit includes a Victory™ Select 3-Way Splitter for LED Puck Lights, which lets you easily connect all three puck lights that come with your kit—it’s not intended for extra lights.
Q: How do I connect the included puck lights to the LED splitter?
Each Victory™ Select LED Puck Light comes with a Mate-N-Lok connector that can be easily plugged into the included Victory™ Select 3-Way Splitter, which has three ports for three LED puck lights.
Q: Do I need anything else besides what’s in the kit?
The kit already includes everything you need to plug into a regular wall socket and power your lights. However, we recommend adding a Leona® Smart Plug for extra convenience. It lets you control your setup from your phone and live-monitor energy use.
