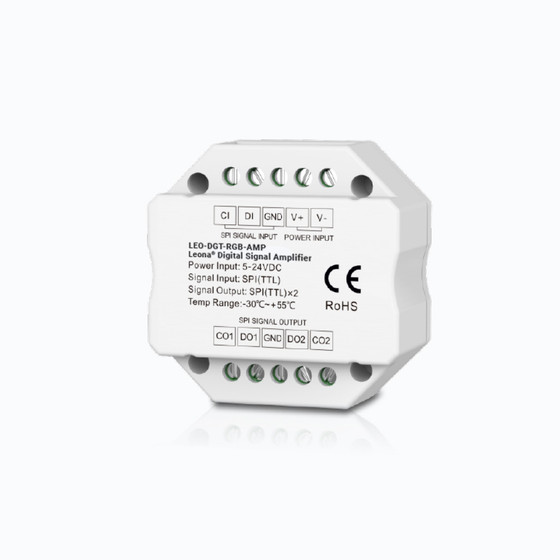

Leona® Digital Amplifier
Designed to enhance the capabilities of your Leona® Digital Controller, this advanced amplifier effectively extends the signal range of your SPI controller to multiple RGB or RGBW digital LED strip lights. Whether you are creating intricate lighting designs or illuminating large spaces, our Leona® Digital Signal Amplifier offers unparalleled versatility and reliability. Elevate your lighting experience, and ensure consistent and vibrant color performance across larger installations with the power of our advanced splitter, designed to amplify the possibilities of your SPI-controlled LED installations.
Depending on the application, there are various ways to wire the Leona® Digital Amplifier to achieve optimal results. Clients should refer to the spec sheet or the installation tab on this webpage to select the wiring option that best suits their needs and accommodates their vision for the lighting project. This ensures that the amplifier is installed correctly and functions efficiently, delivering the desired lighting effect.
Specifications:
- Input Voltage: 5-24V DC
- Input Current: 0.5A Max.
- Input Signal: SPI (TTL) x 1
- Output Signal: SPI (TTL) x 2
- Connector Type: Terminal Block
- Operating Temperature: -22°F to 149°F (-30°C to 65°C)
- Color: White
- IP Rating: IP20
- 5-Year Warranty
- Dimensions: 2 1/16” x 2 1/16” x 1 1/32” (52 x 52 x 26 mm)
Leona® Digital Signal Amplifier Compatible Products
NOTE: This is not a standalone controller. At least one Leona® Digital Controller is required to control your lights in tandem with the Leona® Digital Amplifier.
Controller:
LED Strip Lights:
ColorBright™ RGB Digital Pixel LED Strip Light
Outdoor (IP65) ColorBright™ RGB Digital Pixel LED Strip Light
Power Supplies:
Leona® Products:
Leona® Digital Amplifier Diagrams
Follow this system wiring if you would like the strips to follow the same pattern.
Follow this system wiring if you would like the signal to continue through to multiple LED strip lights.
Leona® Digital Amplifier FAQs
Q. When do I need an amplifier?
You will need an amplifier on installations that require a strip light length that is longer than the rated maximum run length of the LED strip light you're using. For our RGB Pixel LED strip light, you will need to boost the data signal every 32 feet.
Q. Can I use this amplifier with any of your LED strip lights?
The Leona® Digital Amplifier is designed to work with digital LED strip light only. Specifically, our ColorBright™ RGB Digital Pixel LED Strip Light and our Outdoor (IP65) ColorBright™ RGB Digital Pixel LED Strip Light. Please refer to the compatible products section to check out all compatible components.
