Static White LED Strip Light - Plug and Play Kit
Perfect for DIY customers who want a simple solution, our Plug and Play Kits are here to help take the guesswork out of your small to medium sized projects. Once you select your light output, color temperature, strip size and control method, you’re one step closer to completing a simple white light installation!
Note: Each kit comes with a driver specifically chosen to meet the power needs of the lights included. Please refrain from adding additional lights to the kit you purchase, as the power supply won't support them.
Includes Everything You Need for a Seamless Installation:
![]()

![]()

Read Below for a Quick Guide on How to Build your Own LED Strip Light Kit:
01. Choose Your Brightness Level:

Medium - Accent™ Series LED Strip Light: for under cabinets, task lighting, office desks, closets, pantries, headboards, underneath bed frames, over cabinets, bars, displays and more.
High - Architectural™ Series LED Strip Light: for ambient lighting, cove lighting, boldly accentuating architectural features, backlighting stained glass or onyx, signage lighting and more.
02. Choose Your Color Temperature

3000K - Warm White: Complements wood cabinets, oak shelves, and warm-toned materials.
4000K - Natural White: Works beautifully with white cabinets, light wood, and mixed finishes.
5000K - Cool White: Enhances modern spaces with stainless steel, glass shelves, and contemporary materials.
Smart Dimming at the Tip of Your Fingers!

Looking for a smartphone-controlled LED dimmer that connects to your smart home system? The Leona® Smart Home LED Controller easily integrates with Amazon Alexa, Google Home, and other smart home platforms. Create custom lighting scenes, set schedules, and control your LED strip lights exactly how you want.
Includes a wireless remote control for convenient LED dimming, turning your lights on and off, and adjusting brightness even without using your phone. Powered by RF technology, the remote operates separately from any smart home setup. You have three options to control your LED lighting: the included remote, the Leona® Smart App on your smartphone, or both!
Each of our Static White Strip Light Plug and Play Kits comes with:
LED Strip Light - 16 ft:
Power Supply:
*The kit comes with a 24V 96W power supply. Please refrain from adding additional lights to the kit you purchase, as the power supply may not support them.
Controller:
Connectors:
Priceless Service:
![]()
![]()


Installation Diagrams and Downloads
General LED Strip Light Installation Guide
Solderless Connector Installation Guide

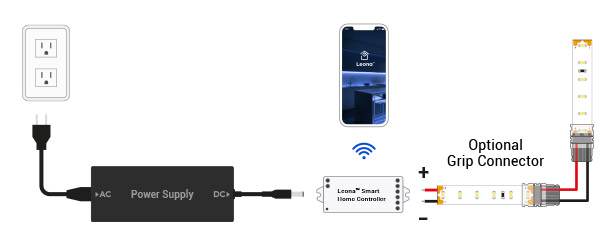

Installation Diagram for Plug and Play Kit with Leona Smart Home Controller

LED Strip Light Specifications
General Specifications
- 15-year LED strip warranty
- 24V DC constant voltage input
- UL Listed (cULus) E362522
- 120 degree lighting beam angle
- Single-bin LED selection to ensure color consistency (3-Step MacAdam)
- 3M VHB 4930 adhesive
- Width: 3/8” (10mm)
- Height: 1/16” (2mm)
- Double layer 4oz pure copper PCB
- Ambient temperature: -4ºF to 113ºF (-20°C to 45°C)
- Operating Temperature: -4°F to 149°F (-20°C to 65°C)
- 50,000 hour lifespan (8 hours a day for 17 years)
Brightness Level: Medium (Accent Series) Specifications
Accent Series LED Strip Light Specification Sheet
| Color - CCT | Watts / Foot (Meter) | Lumens / Foot (Meter) | Lumens / Watt | CRI | Gamut Score (Rg) | Relative Fidelity (Rf) |
| 3000K | 3.5 W/ft (11.5 W/m) |
275 lm/ft (901 lm/m) |
78 | 97 | 103 | 96 |
| 4000K | 1.7 W/ft (5.7 W/m) |
263 lm/ft (864 lm/m) |
75 | 97 | 102 | 96 |
| 5000K | 1.7 W/ft (5.7 W/m) |
300 lm/ft (985 lm/m) |
80 | 97 | 103 | 96 |
Brightness Level: High (Architectural Series) Specifications
Architectural Series LED Strip Light Specification Sheet
| Color - CCT | Watts / Foot (Meter) | Lumens / Foot (Meter) | Lumens / Watt | CRI | Gamut Score (Rg) | Relative Fidelity (Rf) |
| 3000K | 4.4 W/ft (14.4 W/m) |
478 lm/ft (1,567 lm/m) |
108 | 94 | 100 | 92 |
| 4000K | 4.4 W/ft (14.4 W/m) |
493 lm/ft (1,616 lm/m) |
112 | 97 | 99 | 92 |
| 5000K | 4.4 W/ft (14.4 W/m) |
502 lm/ft (1,646 lm/m) |
113 | 95 | 98 | 91 |
Plug-In Power Supply Specifications
Product SKU: 24-DPS2-4
Input Voltage: 100-240V AC 50/60Hz
Output Voltage: 24V DC
Wattage: 96W
Max Amperage: 4A
Efficiency: 88%
Class 2: Yes
Cable Length: 4'
IP Rating: Indoor, Dry Location (IP20)
Dimensions (L*W*H): 5 1/2" x 2 3/8" x 1 3./8"
Downloads
UltraBright™ Accent Series LED Strip Light Spec Sheet
UltraBright™ Architectural Series LED Strip Light Spec Sheet
24V 96W Plug-in Power Supply Adaptor Spec Sheet
Leona® Pro Smart Home Controller Spec Sheet
Leona® Pro Smart Home Remote Control Spec Sheet
Grip Connectors Spec Sheet
Frequently Asked Questions
How long are the LED strips in this kit?
This kit includes a 16-ft LED strip light reel, enough for most under-cabinet, closet, and accent lighting projects. You can cut the LED strip to fit your space perfectly, and use the included connectors to power different sections for multiple areas like shelves or around corners.
Do I need an electrician to install this LED strip kit?
You can totally install this yourself!—it’s a simple plug-and-play LED strip kit that connects to any standard wall outlet. But if you’d prefer an extra hand or want someone to double-check the setup, we recommend calling an electrician.
Can I control these LED lights with my smartphone?
Yes! The included Leona® Smart Home Controller connects to the free Leona® Smart App on your phone. You can also use the included remote control, or connect to Alexa and Google Home for voice commands like "turn on the kitchen lights."
Can I cut or connect multiple sections of LED strip?
Absolutely! LED strips are designed for easy customization without special tools or soldering skills. You can cut this LED strip at the designated cut marks, which appear approximately every inch along the strip's surface—simply use sharp scissors to cut directly on the printed cut line.
The kit includes solderless connectors that make it easy to split your LED strip into multiple sections, navigate around corners and obstacles, bridge short gaps under 6 inches, or create custom layouts for any space. No technical expertise required—just cut, connect, and install!
Which lighting projects work best with this LED strip kit?
This versatile LED strip kit is perfect for mirror backlighting, as well as closet, shelf, under-cabinet, or workshop accent lighting. You can also use it in other indoor accent lighting applications where you want smart control and easy installation.
