Compatible LED Power Supplies / Drivers

Read the descriptions for our different types of power supplies below to find the type that will work best for your lighting application.

Plug-in Adaptor Power Supplies

Shop Plug-in Adaptors

Plug-in adaptor power supplies

If you do not plan to use an AC dimmer (such as a Lutron Diva), or you want to use an in-line dimmer (installed after the power supply to dim on the DC side), you will need a non-dimmable power supply like the plug-in desktop style power units or a Mean Well brand hard wired (no plugs) power supply (more on Mean Well in the next section below).

If you are installing ColorBright RGB LED strip lights or Tunable Dynamic LED strip lights, you will need a controller to control the color of your lights. You will need a non-dimmable power supply such as these adaptors or a Mean Well power unit below. *The RGB / Dynamic controllers are NOT compatible with Zurik Dimmable power supplies.

Example Setup: AC Power - [Non-Dimmable Driver] - [Optional Dimmer/Controller] -  [LED Strip Lights]

- 12W - 120W / 12V DC and 24V DC Outputs

- North American Plugs

- Will work with all Flexfire LEDs strip lights

- Cannot be used with AC dimmers such as Lutron AC Triac dimmers

- Works with PWM dimmers that are installed in-line on the DC side (after) the power supply

_____________________________________________________________________________

Mean Well Low Voltage Power Supplies

Shop Mean Well Power Supplies

Mean Well Power Supplies

If you do not plan to use an AC dimmer (such as a Lutron Diva), or you want to use an in-line dimmer (installed after the power supply to dim on the DC side), you will need a non-dimmable power supply like the plug-in desktop style power units or a Mean Well brand hard wired (no plugs) power supply.

If you are installing ColorBright RGB LED strip lights or Tunable Dynamic LED strip lights, you will need a controller to control the color of your lights. You will need a non-dimmable power supply such as these Mean Well power supplies or a plug and play adaptor above. *The RGB / Dynamic controllers are NOT compatible with Zurik Dimmable power supplies.

Example Setup: AC Power - [Non-Dimmable Driver] - [Optional Dimmer/Controller] -  [LED Strip Lights]

- 20W - 600W / 12V DC and 24V DC Outputs

- Will work with all Flexfire LEDs strip lights

- Plug not included: Required to be hard wired to AC power or use a separate electrical plug

- Cannot be used with AC dimmers such as Lutron AC Triac dimmers

- Works with PWM dimmers that are installed in-line on the DC side (after) the power supply

_____________________________________________________________________________

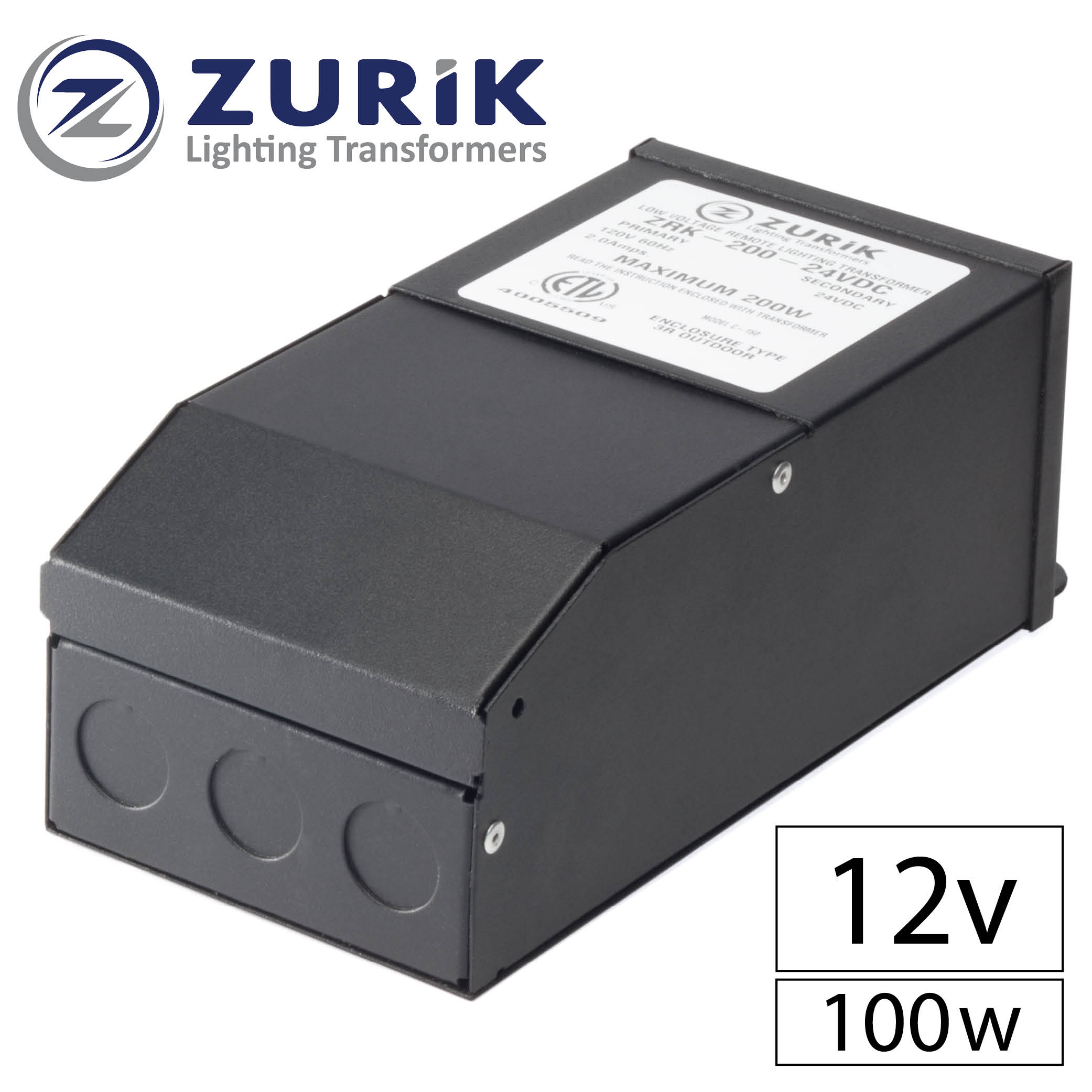

Zurik Dimmable Low Voltage Driver (Magnetic MLV and Electronic EMLV)

Shop Zurik EMLV Electronic Drivers (NEW!)   /   Shop Zurik MLV Magnetic Drivers

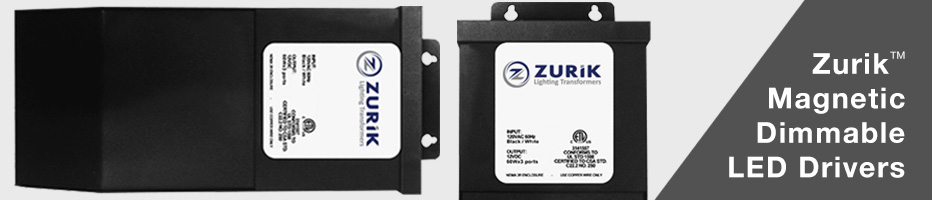

Zurik Magnetic Dimmible Power Supplies

If you are planning to install your LED strip lights to a Lutron-style wall dimmer (where the dimmer will be installed on the AC side before the driver), you will need to get a Zurik dimmable magnetic or electronic driver.

Example Setup: AC Power - [AC Dimmer] - [Dimmable Driver] - [LED Strip Lights]

20W - 300W / 12V DC and 24V DC Outputs

- Required to be hard wired to AC power or use a separate electrical plug

- MLV Series compatible with magnetic low voltage dimmers listed on product pages

- EMLV Series compatible with most Triac, Forward and Reverse Phase, Magnetic (MLV) and Electronic Low Voltage (ELV) Dimmers, Lutron/Leviton AC Wall Dimmers

- All single color LED strip Lights only (not compatible with Dynamic Tunable White and RGB)



Need some assistance?

Contact our design team for help choosing your power supply



Do you need a 'dimmable' power supply?

Which option best fits your lighting installation?

Option 1: If you are planning to install your LED strip lights to a Lutron-style wall dimmer (where the dimmer will be installed on the AC side before the driver), you will need to get a Zurik dimmable magnetic or electronic driver.

Example: AC Power - [AC Dimmer] - [Dimmable Driver] - [LED Strip Lights]

Zurik EMLV Electronic Driver / Zurik MLV Magnetic Driver

Option 2: If you do not plan to use an AC dimmer, or want to use an in-line dimmer (installed after the power supply to dim on the DC side), you will need a non-dimmable power supply like the plug-in desktop style power units or a Mean Well brand hard wired (no plugs) power supply.

Example: AC Power - [Non-Dimmable Driver] - [Optional Dimmer/LED Controller] - [LED Strip Lights]

Plug-in 12V and 24V Adaptors  /  Mean Well Brand Drivers

Option 3: If you are installing ColorBright RGB LED strip lights or ColorBright Tunable Dynamic LED strip lights, you will need a controller to control the color of your lights. These controllers are NOT compatible with Zurik Dimmable power supplied. You cannot use a Zurik Power Supply with RGB or Tunable Dynamic strip series.

Example: AC Power - [Non-Dimmable Driver] - [LED Dimmer/Controller] -  [LED Strip Lights]

Plug-in 12V and 24V Adaptors   /  Mean Well Brand Drivers
