These red LED flex strips are sold by the Reel! (5 Meters, 16.4 feet)
Please enter the quantity wanted in REELS above when checking out.

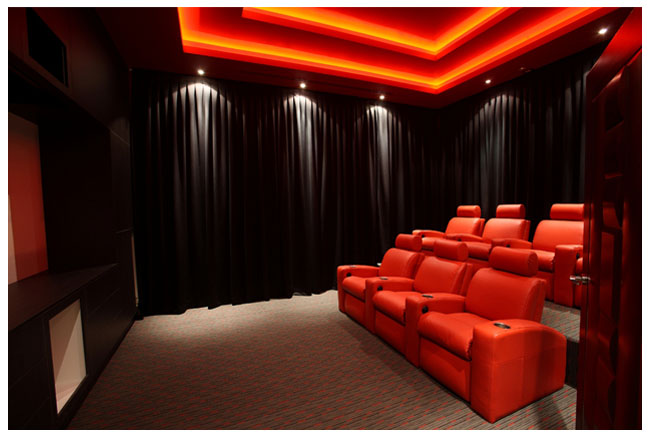

Red LED flexible strip lights are mostly used for accent lighting in Homes, LED projects, bar and club lighting, display cases, behind TVs and pictures, and more! Since all Red LED flexible strips have a 3M backing, they can be attached almost anywhere.
Each foot of our High Intensity red LED color bright Series LED Strip light uses 2.9 watts. You can bend the red led light strip up to 90 degrees. This makes it very easy to install in many places to provide adequate corner or cove lighting, under cabinet lighting, and surrounding architecture. Red LEDs can also be used to accelerate plant growth by hitting the exact light frequency that plants use for photosynthesis.
|-In boating docks
|| -Back yard arbours
|-LED club light||-Under cars LED light|
|-Bar top LED light||-TV backlighting|
|-Anywhere that needs bright blue
LED strip lights
Colorbright Series use 600 LEDs per reel.
-Some sell the LED light strips with ONLY 150 or 300 LEDs per reel. If they have 600 also, look at the lumen.
Our LED strip lights use the highest quality materials.
-Our LED strips use the best PCB boards, resistors, and 3528 LED chips. CE, RoSH, and UL listed LED strip lighting proves proof of quality. Don't just take our word for it. The blinding light will prove it to you! [UL coming soon]. All products come with a 2 year warranty
Technical Details and Specifications:
|Product|| -Vivid red LED Strip Light by the foot
|Color Temperature||-615nm - 640nm|
|Lumen (Brightness)|| -1467 lumen per reel / 90 lumen per foot
|Quantity per unit|| -Sold per reel of 16.4 feet
|Strip Width|| - Strip is 5/16 inch (8mm) wide
|Working Voltage||-12v DC|
|Beam Angle||-120 Degrees|
-Yes, every third LED
|Power consumption|| -2.92 watts per foot / 48 watts per reel
|LED Count per reel||-600 LEDs|
|Maximum run length|| -32 feet for continuous series
To power your lights you have two options:
|Feet Used||Desktop Non-Dimmable Driver||Feet Used||Magnitude Dimmable LED Driver|
|1-6|| 12v -2 amp- 24w LED Driver
||1-6||12v 20W Dimmable LED Driver|
|7-13||12v -4 amp- 48w LED Driver||7-11||12v 40W Dimmable LED Driver|
|14-19 (1 Reel)||12v -6 amp- 72w LED Driver||12-17 (1 reel)||12v 60W Dimmable LED Driver|
|20-26||12v -8 amp- 96w LED Driver||18-27||12v 100W Dimmable LED Driver|
|27-32||12v -10 amp- 120w LED Driver||28-41||12v 150W Dimmable LED Driver|
All LED strip lights are dimmable. The Colorbright series LED strips can be dimmed either through our dimmers below [PWM dimming], or by a Lutron or Leviton wall dimmer
To dim the lights you have two options:
|Colorbright LED dimmers|
